求助：flink1.11以上版本在k8s集群上的部署问题！[阿里云实时计算 Flink版]

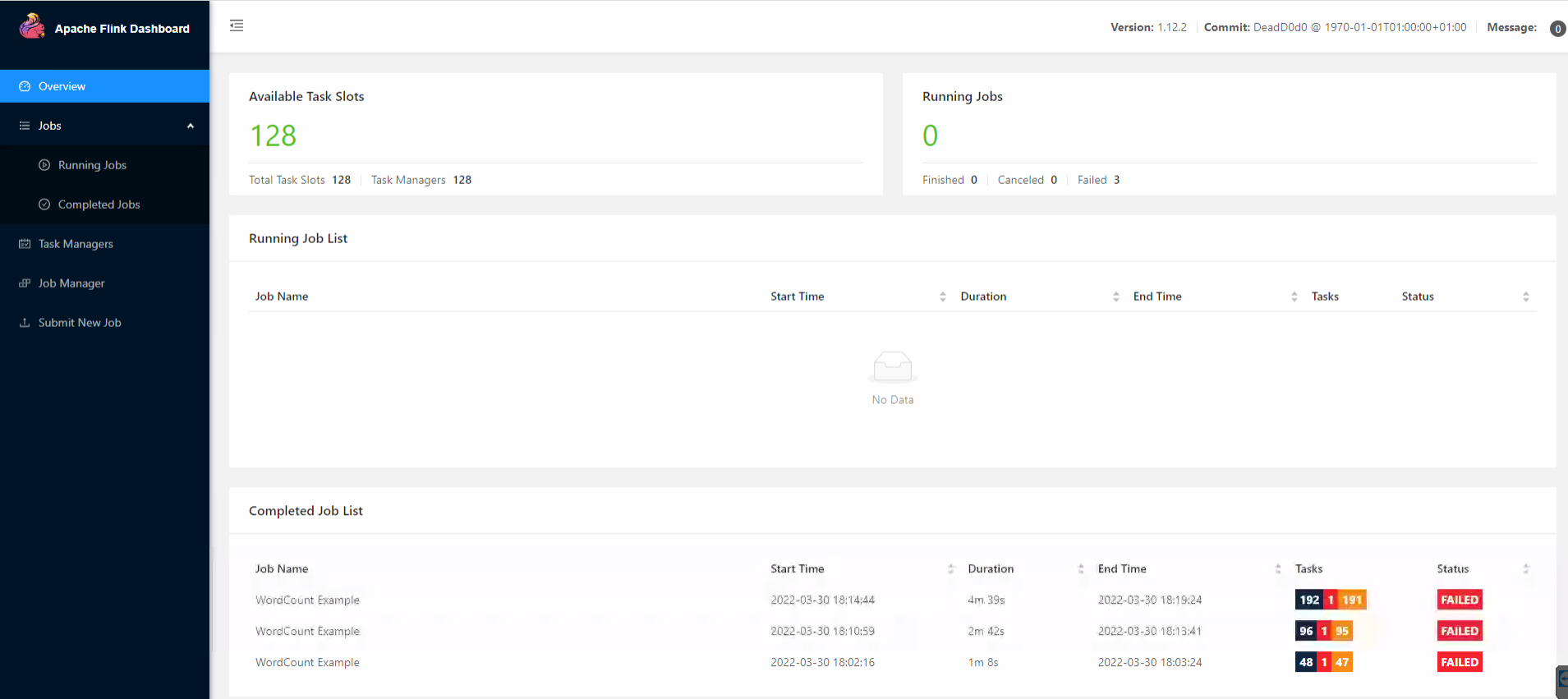

按照官方文档https://nightlies.apache.org/flink/flink-docs-release-1.12/deployment/resource-providers/standalone/kubernetes.html#session-mode 在kubernetes上部署flink1.11以上版本会出现奇怪的问题（1.10以前正常），提交作业后Dashboard会持续卡顿处于loading状态，始终显示不出job信息：

直到作业失败，且卡顿时间和数据源的并行度有关，并行度越高卡顿时间越久：

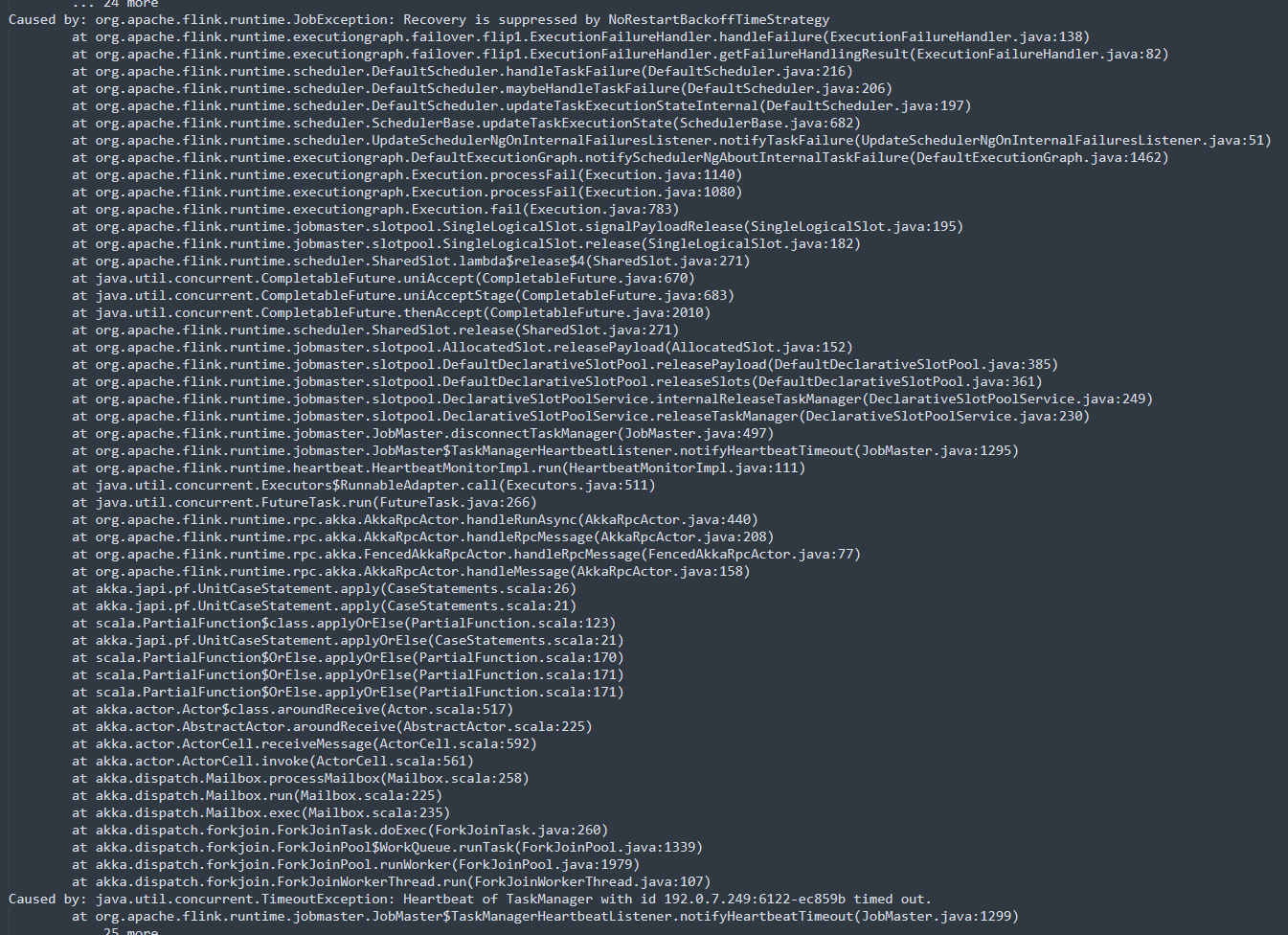

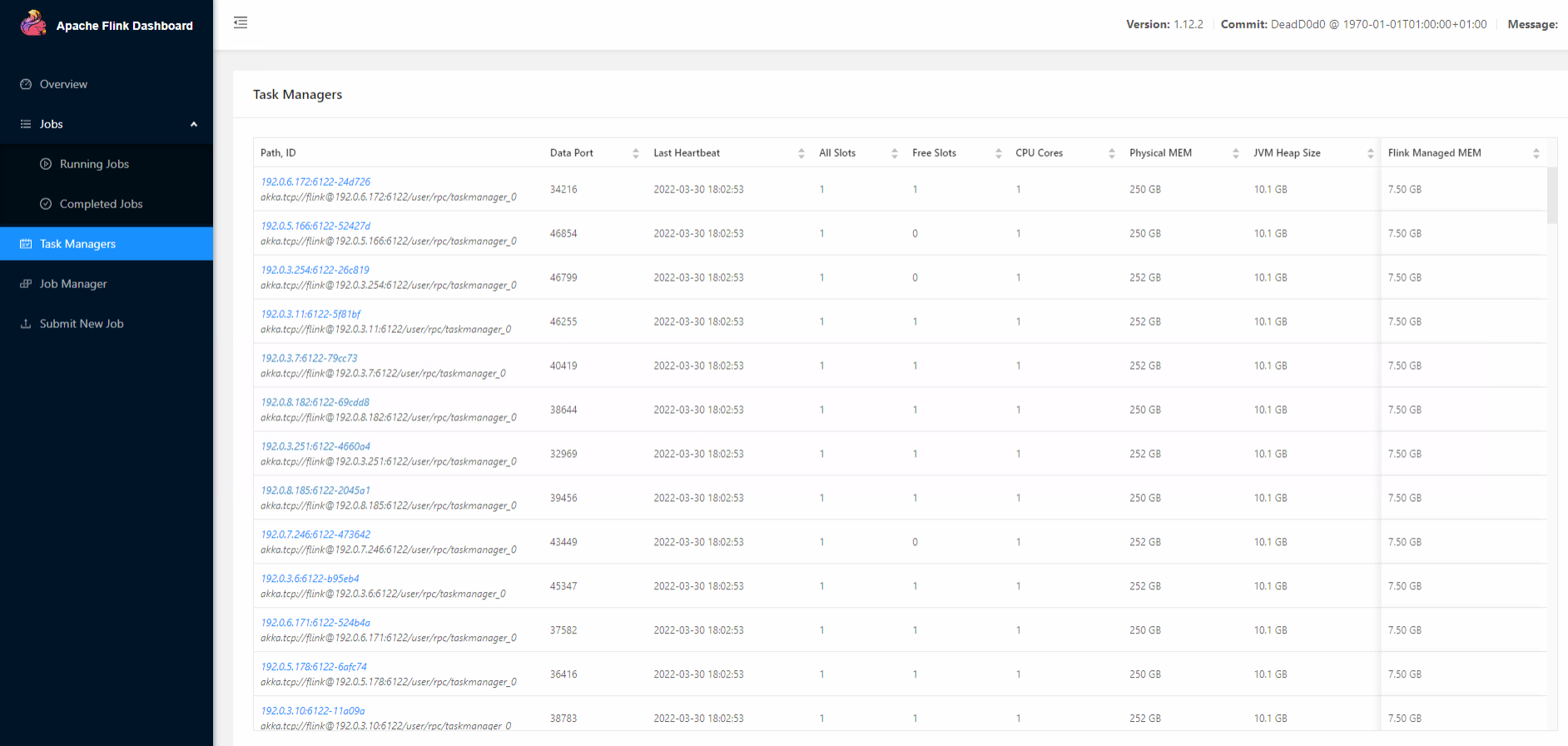

末尾附上两段报错信息，主要是一些心跳timeout之类的通信错误，但是在loading的时候Dashboard上仍然可以显示Taskmanager列表，点进去观察也没发现异常的GC停顿，而且如果是通信环境问题为什么1.10之前的版本没问题？

不知道是不是部署方式不对？下面是集群环境、部署文件和异常信息：

apiVersion: v1
kind: ConfigMap
metadata:
  name: flink-config-new
  namespace: gaia
  labels:
    app: flink-new
data:
  flink-conf.yaml: |+
    jobmanager.rpc.address: flink-jobmanager-new
    taskmanager.numberOfTaskSlots: 1
    blob.server.port: 6124
    jobmanager.rpc.port: 6123
    taskmanager.rpc.port: 6122
    queryable-state.proxy.ports: 6125
    jobmanager.memory.process.size: 1024m
    taskmanager.memory.process.size: 10240m
    akka.ask.timeout: 60s
    web.timeout: 300000
    heartbeat.timeout: 60000
  log4j-console.properties: |+
    log4j.rootLogger=INFO, file
    log4j.logger.akka=INFO
    log4j.logger.org.apache.kafka=INFO
    log4j.logger.org.apache.hadoop=INFO
    log4j.logger.org.apache.zookeeper=INFO
    log4j.appender.file=org.apache.log4j.FileAppender
    log4j.appender.file.file=${log.file}
    log4j.appender.file.layout=org.apache.log4j.PatternLayout
    log4j.appender.file.layout.ConversionPattern=%d{yyyy-MM-dd HH:mm:ss,SSS} %-5p %-60c %x - %m%n
    log4j.logger.org.apache.flink.shaded.akka.org.jboss.netty.channel.DefaultChannelPipeline=ERROR, file

apiVersion: apps/v1
kind: Deployment
metadata:
  name: flink-jobmanager-new
  namespace: gaia
spec:
  replicas: 1
  selector:
    matchLabels:
      app: flink-new
  template:
    metadata:
      labels:
        app: flink-new
        component: jobmanager
    spec:
      containers:
      - name: jobmanager
        image: flink:1.12.2
        args:
        - jobmanager
        ports:
        - containerPort: 6123
          name: rpc
        - containerPort: 6124
          name: blob
        - containerPort: 6125
          name: query
        - containerPort: 8081
          name: ui
        env:
        - name: JOB_MANAGER_RPC_ADDRESS
          value: flink-jobmanager-new
        volumeMounts:
        - name: flink-config-volume-new
          mountPath: /opt/flink/conf/
        - name: gaia-volume-new
          mountPath: /opt/data/
      volumes:
      - name: flink-config-volume-new
        configMap:
          name: flink-config-new
          items:
          - key: flink-conf.yaml
            path: flink-conf.yaml
          - key: log4j-console.properties
            path: log4j-console.properties
          - key: log4j-cli.properties
            path: log4j-cli.properties
      - name: gaia-volume-new
        persistentVolumeClaim:
          claimName: gaia-pvc

apiVersion: apps/v1
kind: Deployment
metadata:
  name: flink-taskmanager-new
  namespace: gaia
spec:
  replicas: 128
  selector:
    matchLabels:
      app: flink-new
  template:
    metadata:
      labels:
        app: flink-new
        component: taskmanager
    spec:
      containers:
      - name: taskmanager
        image: flink:1.12.2
        args:
          - taskmanager
        ports:
        - containerPort: 6121
          name: data
        - containerPort: 6122
          name: rpc
        - containerPort: 6125
          name: query
        env:
        - name: JOB_MANAGER_RPC_ADDRESS
          value: flink-jobmanager-new
        volumeMounts:
        - name: flink-config-volume-new
          mountPath: /opt/flink/conf/
        - name: gaia-volume-new
          mountPath: /opt/data
      volumes:
      - name: flink-config-volume-new
        configMap:
          name: flink-config-new
          items:
          - key: flink-conf.yaml
            path: flink-conf.yaml
          - key: log4j-console.properties
            path: log4j-console.properties
          - key: log4j-cli.properties
            path: log4j-cli.properties
      - name: gaia-volume-new
        persistentVolumeClaim:
          claimName: gaia-pvc

apiVersion: v1
kind: Service
metadata:
  name: flink-jobmanager-new
  namespace: gaia
spec:
  ports:
  - name: rpc
    port: 6123
  - name: blob
    port: 6124
  - name: query
    port: 6125
  - name: ui
    port: 8081
  selector:
    app: flink-new
    component: jobmanager
  type: NodePort

（提交不上去，只截关键部分图）
